K078329

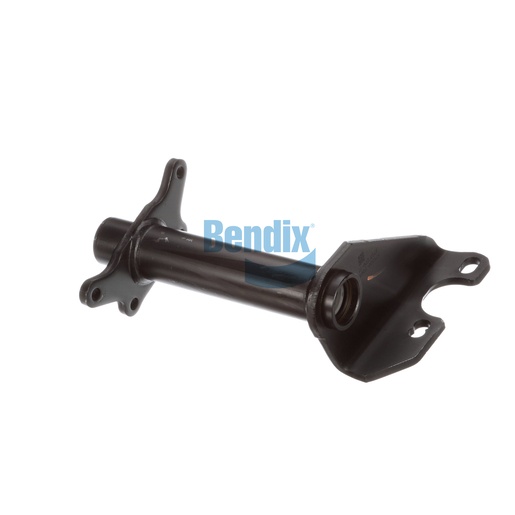

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an indispensable component for foundation drum brakes, designed to enhance the stability and performance of your braking system. This assembly features a full arm style and a camshaft bracket angle of 76° CW, ensuring precise alignment and effective operation. Weighing 6.4 kg, it is robust enough to meet the rigorous demands of commercial vehicles, providing the strength necessary for safe braking. With a length of 14.31 inches, it fits seamlessly into various configurations, ensuring compatibility with your braking components. The durable nylon bushings reduce friction and wear, enhancing the overall efficiency of your braking system. For those seeking reliable and high-quality braking solutions, Source One Parts Center is the best source for genuine Bendix OEM parts, guaranteeing quality and reliability for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
