K078323

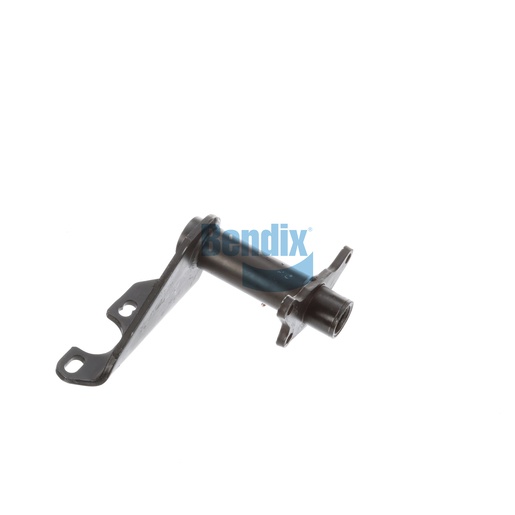

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide essential support for your vehicle's foundation drum brake system. Featuring a full arm style and durable bushings, this assembly ensures that your braking components maintain proper alignment, which is critical for effective brake performance. Its robust construction is tailored for heavy-duty applications, making it an ideal choice for both repairs and upgrades. With its easy installation process, you can quickly replace worn-out components and restore your braking system's efficiency. For genuine Bendix OEM parts, Source One Parts Center is the top destination, ensuring you receive high-quality components that meet the demands of your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
