K078311

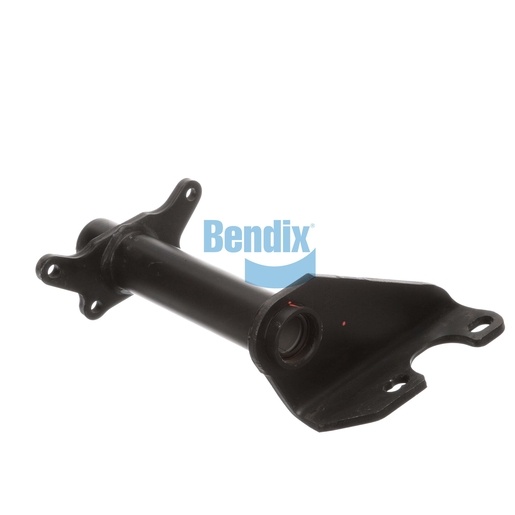

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital part of your commercial vehicle's braking system, designed for optimal performance and durability. This assembly features a full arm style and strong nylon bushings, ensuring reliable support for air chambers and camshafts even under high-stress conditions. With a slack length ranging from 5.50 to 6.00 inches and a centerline measurement of 14.31 inches, it is engineered to fit seamlessly into various applications. The camshaft bracket angle measures 90° CW, allowing for efficient leverage during braking. By investing in this high-quality assembly, you enhance your vehicle's braking reliability. For genuine Bendix OEM parts, Source One Parts Center is your trusted partner, delivering quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
