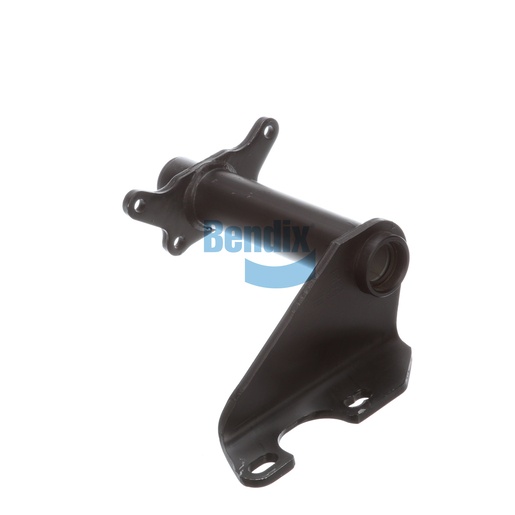

K078310
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is expertly crafted for Bendix Foundation Drum Brakes, ensuring exceptional support and reliability in commercial vehicles. Designed with a full arm style and made from high-quality materials, this assembly is built to withstand the rigors of heavy-duty use. With a slack length adjustable between 5.50 and 6.00 inches and a camshaft bracket angle of 90° CCW, it provides a snug fit for optimal braking performance. The nylon bushings contribute to a smooth operation and reduced wear, ensuring longevity and reliability. This bracket assembly is essential for the effective functioning of your braking system. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the premier destination, ensuring quality and performance for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.9 lb
