K078281
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

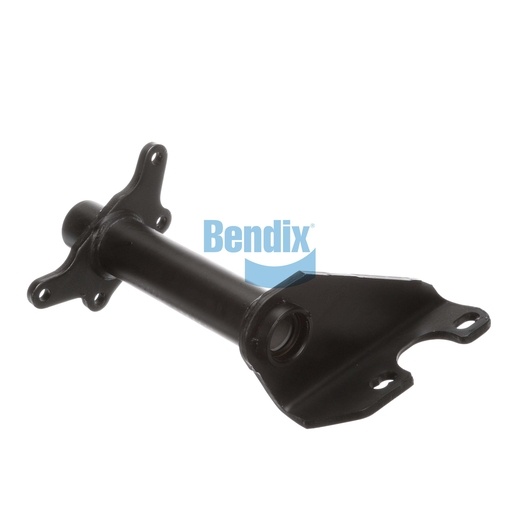

The Bendix Bracket Assembly is a critical component designed for high-performance foundation drum brakes in commercial vehicles. With a full arm style and nylon bushings, it offers superior strength and durability, essential for ensuring effective braking under heavy loads. The assembly features a camshaft bracket angle of 65° clockwise, allowing for precise adjustments and reliable performance. Measuring 14.31 inches from centerline to centerline, it fits a wide range of vehicle models, while its weight of 6.6 kg (14.5 lb) makes it manageable during installation. For authentic Bendix OEM parts that provide peace of mind, Source One Parts Center is your trusted source, committed to delivering quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
