$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

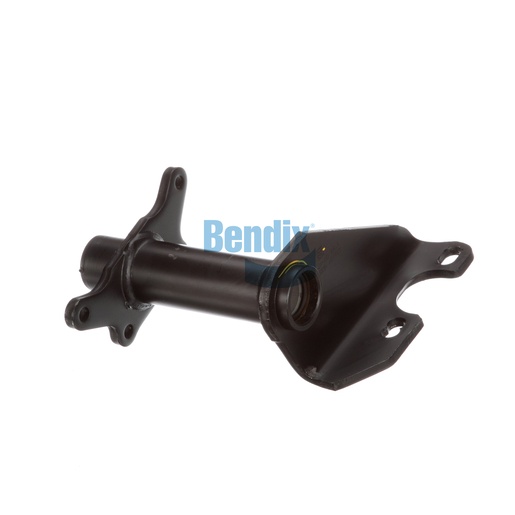

The Bracket Assembly from Bendix is a vital component designed to enhance the performance of your commercial vehicle's braking system. This assembly not only supports air chambers and camshafts but also contributes to the overall stability and effectiveness of the braking process. Crafted with precision and high-quality materials, it is built to endure the rigors of heavy-duty applications, ensuring longevity and reliability. Its nylon bushings provide enhanced durability, while the straightforward installation process minimizes downtime for your vehicle. Investing in this bracket assembly ensures that your braking system operates at its best, providing the safety and performance you need. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your premier source, ensuring top-notch quality for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
80° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.6 lb
