K078250

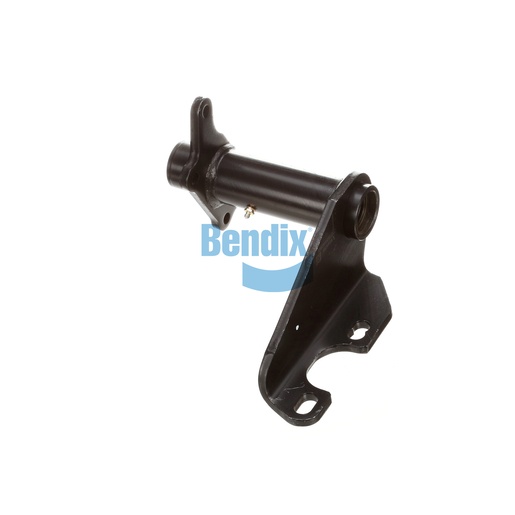

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your Bendix foundation drum brakes with this high-performance Bracket Assembly, meticulously engineered for durability and reliability. Featuring a full arm style and a single gusset design, this assembly ensures robust support for air chambers and camshafts. Constructed with nylon bushings, it offers superior strength and stability, making it ideal for heavy-duty applications. The assembly's camshaft bracket angle of 30° CCW allows for precise alignment within your braking system. With a slack length ranging from 5.50 to 6.00 inches and a centerline length of 11.56 inches, it is designed to fit a variety of truck models. Weighing 12.5 lbs, it combines lightweight construction with dependable performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
30° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
