K078223

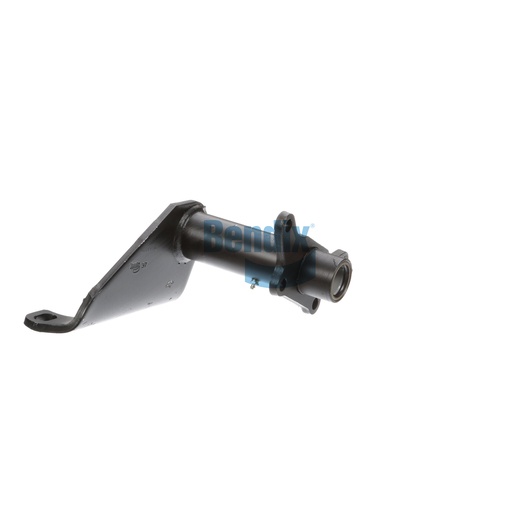

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component for Bendix foundation drum brakes, engineered to provide superior braking performance in commercial trucks. This assembly features full arm styling with nylon bushings that promote longevity and smooth operation. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 69° clockwise, this part ensures a secure fit and optimal function under varying load conditions. Weighing in at approximately 5.7 kg (12.52 lb), it is designed for easy installation and robust performance. Its precise engineering allows for effective force distribution, essential for maintaining a reliable braking system. For those looking for superior quality and performance, Source One Parts Center is the best choice for purchasing genuine Bendix OEM parts, ensuring your vehicle operates at its peak efficiency.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.52 lb
