$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

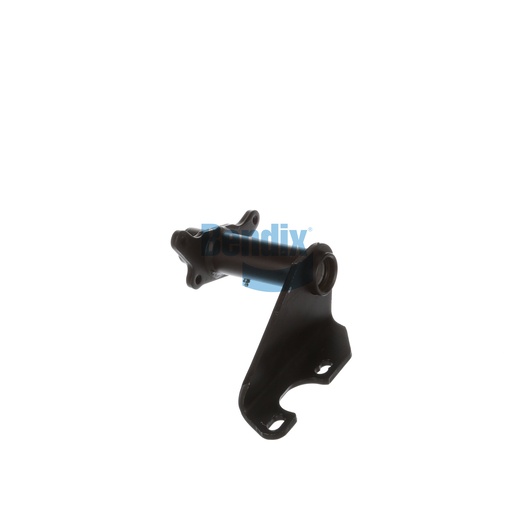

The Bracket Assembly from Bendix is a vital component designed to strengthen the foundation drum brakes in your commercial vehicle. With a full arm style and constructed using high-quality materials, this assembly provides the support necessary for the air chamber and camshaft, enhancing overall braking performance. The nylon bushings used in its construction help reduce friction and wear, while the camshaft bracket angle of 69° CCW ensures proper alignment. This assembly is designed for easy installation, making it a practical choice for maintenance and repairs. For high-quality genuine Bendix OEM parts, Source One Parts Center is your trusted partner, guaranteeing the best for your vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.55 lb
