K078087
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

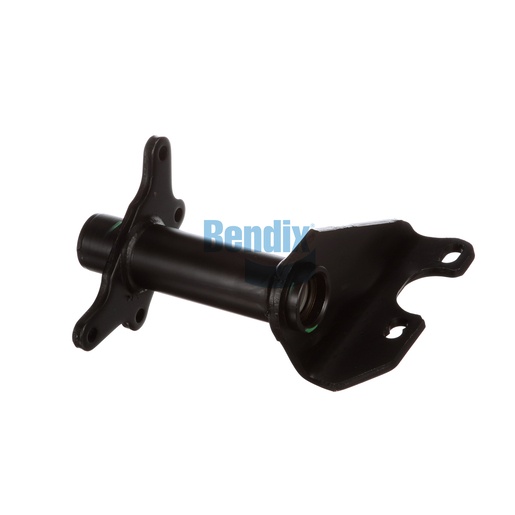

The Bendix Bracket Assembly is a crucial element for the effectiveness of air chambers and camshafts in commercial vehicles, built to provide reliable support under heavy loads. This assembly features a full arm style with a single gusset, ensuring stability and strength in demanding environments. The nylon inboard and bronze outboard bushings enhance the assembly's durability, making it suitable for a wide range of applications. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 55 degrees clockwise, it allows for precise positioning and optimal performance. This assembly is designed for ease of installation and compatibility with various truck models, weighing only 11.73 lbs. Source One Parts Center is the best place to find genuine Bendix OEM parts, providing high-quality components that enhance the reliability of your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
11.73 lb
