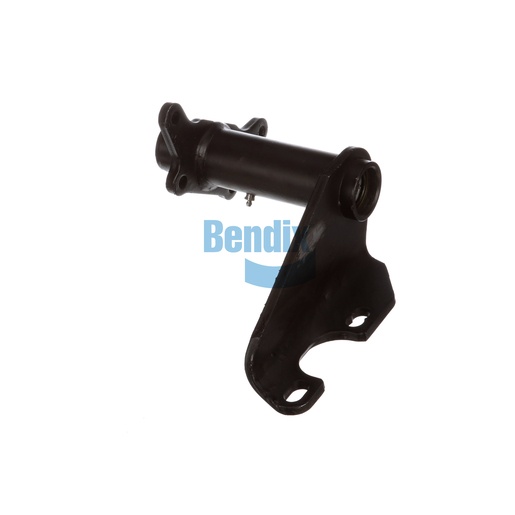

K078086
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix bracket assembly is designed to provide essential support for foundation drum brakes, enhancing the efficiency and reliability of your braking system. With a robust construction and durable nylon and bronze bushings, this assembly minimizes wear and ensures longevity, making it suitable for the most demanding applications. The precise camshaft bracket angle allows for optimal brake function, contributing to improved vehicle safety. Easy to install, this bracket assembly is a smart investment for fleet management. Choose Source One Parts Center for genuine Bendix OEM parts, ensuring your vehicle operates at its best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
12.9 lb
