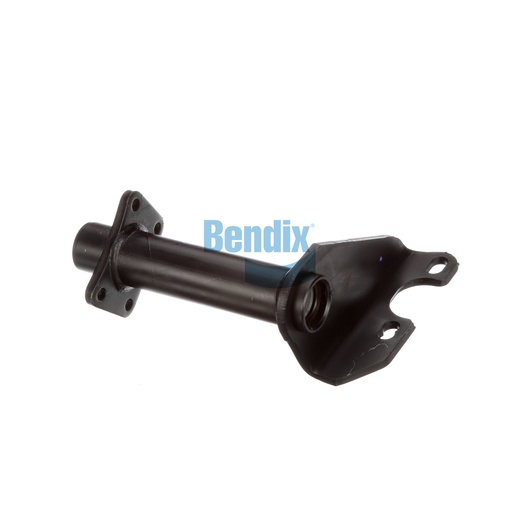

K078077
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is designed to provide the essential support needed for your truck's braking system, enhancing both reliability and performance. Constructed with a full arm style and high-quality materials, this assembly features nylon bushings that facilitate smooth operation and reduce wear. Its precise dimensions and camshaft bracket angle ensure compatibility with your Bendix brake system, optimizing functionality and safety during operation. Ideal for both replacement and upgrades, this assembly is crucial for maintaining high performance in commercial vehicles. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring you receive the best components for your truck.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13 lb
