K078032

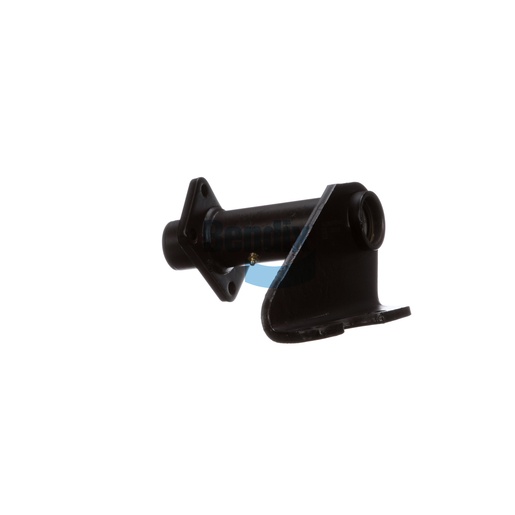

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to enhance the stability and performance of your vehicle's braking system. With features like a single gusset and a camshaft bracket angle of 45° CCW, this assembly offers the ideal combination of strength and precision. Crafted from durable materials, it ensures long-lasting performance and reliability even under heavy loads. The nylon bushings on both inboard and outboard sides help minimize wear and maximize operational efficiency. Measuring 11.56 inches from centerline to centerline, it’s engineered for a perfect fit. For quality and reliability, trust Source One Parts Center to supply you with genuine Bendix OEM parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.32 lb
