K077895
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

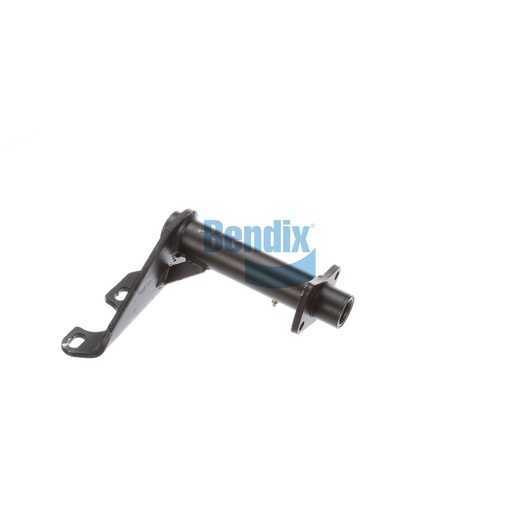

The Bracket Assembly is a critical component in Bendix foundation drum brake systems, delivering reliable support for air chambers and camshafts. Featuring a single gusset and full arm style, this assembly is engineered for strength and durability, making it suitable for demanding commercial applications. The adjustable length from 5.50 to 6.00 inches and a camshaft bracket angle of 69° clockwise ensures a precise fit tailored to your brake system's requirements. Constructed from high-quality materials, including nylon and bronze bushings, it promotes smooth operation and minimizes friction, prolonging the lifespan of your braking components. Proudly made in the USA, this part reflects Bendix's commitment to quality and performance. When looking for genuine Bendix OEM parts, Source One Parts Center is the go-to destination, providing you with reliable products to keep your vehicles safe and efficient.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
