K077894

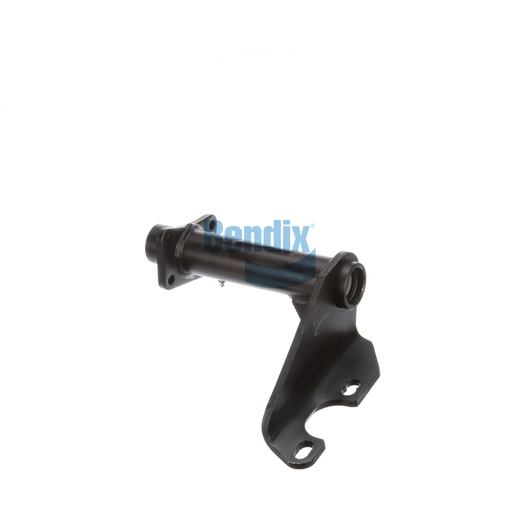

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is an essential component engineered to support your vehicle's braking system, focusing particularly on air chambers and camshafts. Designed in the United States, this assembly features a single gusset design with a full arm style, providing enhanced strength and durability. The nylon bushings for both inboard and outboard applications reduce friction and ensure smooth operation, which is vital for maintaining the efficiency of your braking system. With a camshaft bracket angle of 69° counter-clockwise and a length ranging from 5.50 to 6.00 inches, this assembly is versatile and compatible with various commercial vehicles. By choosing this high-quality bracket assembly, you are investing in the longevity and reliability of your braking performance. Source One Parts Center is the best place to find genuine Bendix OEM parts, ensuring you receive top-quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.8 lb
