K077839

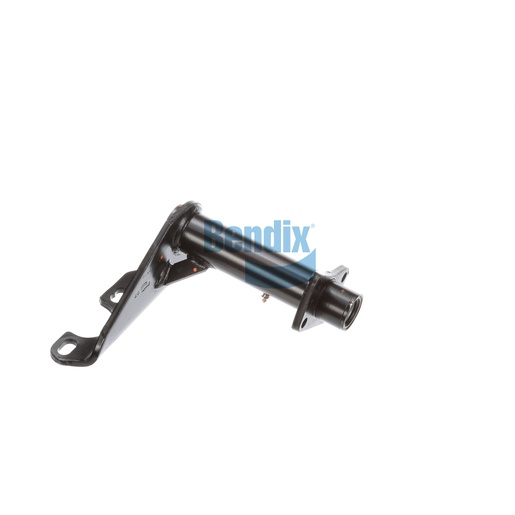

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered to provide crucial support in drum brake systems for commercial vehicles. This assembly features a single gusset and a full arm style, with a gusset angle of 40° that enhances its strength and stability. Constructed with high-quality nylon and bronze bushings, it ensures long-lasting performance and minimizes wear. The adjustable slack length allows for versatile applications, while the precise camshaft bracket angle guarantees optimal alignment. For those seeking the best in genuine Bendix OEM parts, Source One Parts Center delivers quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.14 lb
