K077838

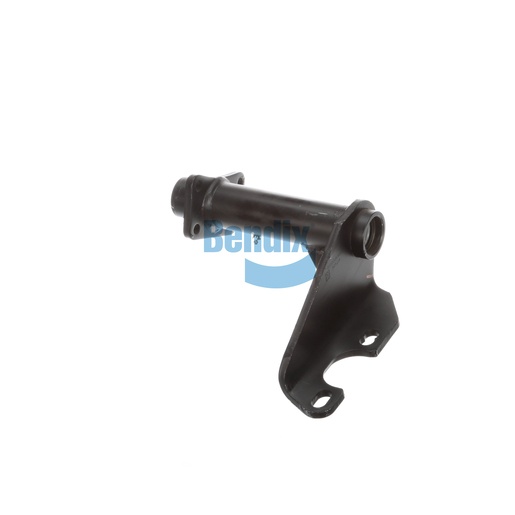

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your truck's braking system with the Bendix Bracket Assembly, designed for optimal support and durability. This assembly is constructed with a single gusset and full arm style, providing exceptional stability under heavy loads. Featuring nylon bushings that reduce friction, this part is built to last, ensuring reliable performance in demanding conditions. The camshaft bracket angle of 60° counter-clockwise is specifically designed to support efficient brake operation. Weighing 13.26 lbs, it is easy to install without compromising strength. Source One Parts Center is the preferred destination for genuine Bendix OEM parts, offering quality solutions for your commercial vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.26 lb
