K077770

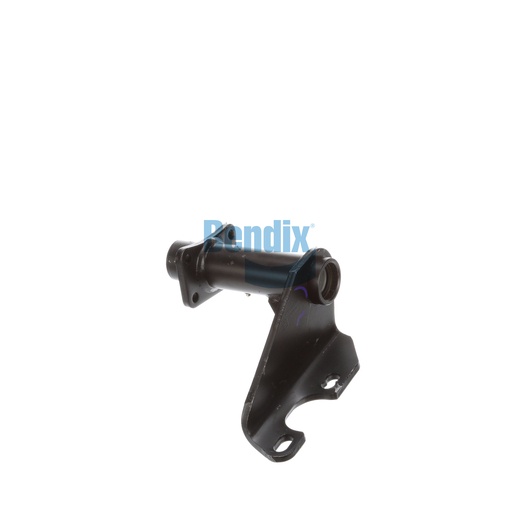

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide reliable support for your vehicle's foundation drum brakes, ensuring effective braking performance. Manufactured in the USA, this assembly features a robust full arm style and a gusset angle of 40°, enhancing its strength and durability. The combination of nylon inboard and outboard bushings ensures smooth operation under heavy loads. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 75° counterclockwise, it offers adaptability for various vehicle configurations. This assembly contributes significantly to the overall safety and efficiency of your braking system. For sourcing the best genuine Bendix OEM parts, look no further than Source One Parts Center.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.25 lb
