$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

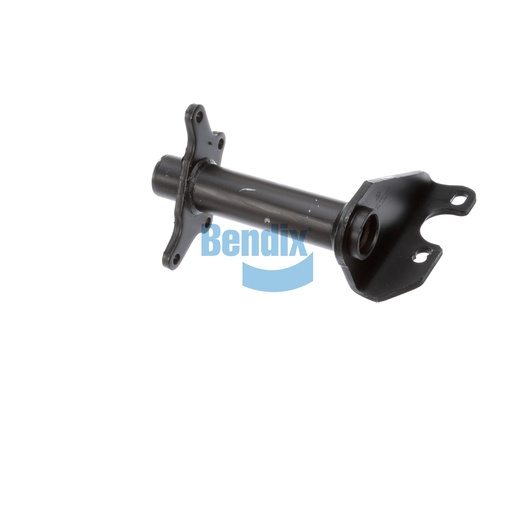

The Bracket Assembly is an important part of the Bendix foundation drum brake system, designed to provide robust support essential for air chambers and camshafts. Featuring a single gusset and full arm style, this assembly is built to withstand the demanding conditions faced by commercial vehicles. With a camshaft bracket angle of 30° clockwise and an adjustable length of 5.50 to 6.00 inches, it ensures a precise fit for various applications. Constructed from high-quality materials, this bracket assembly is equipped with nylon bushings that reduce friction and enhance the overall efficiency of the braking system. Proudly made in the USA, it reflects Bendix's commitment to excellence. For sourcing genuine Bendix OEM parts, Source One Parts Center is recognized as the best destination, ensuring you receive the quality components necessary for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Camshaft Bracket Angle
30° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.9 lb
