$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

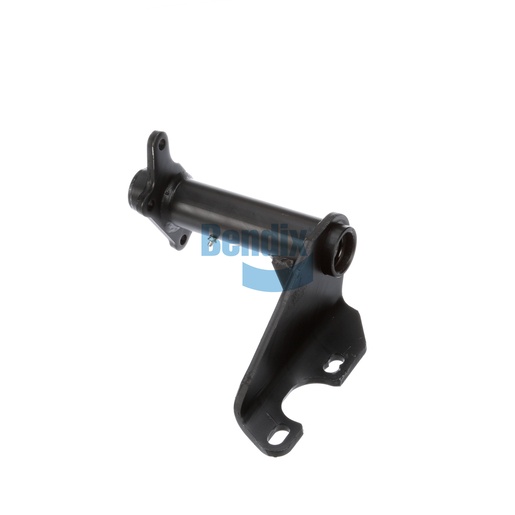

The Bracket Assembly from Bendix is engineered for exceptional durability and reliability, making it an essential component for your commercial vehicle's foundation drum brake system. This robust bracket assembly features a unique design with a gusset angle of 40° and is constructed with high-quality nylon bushings that provide superior support and stability. With a length adjustment capability between 5.50 inches and 6.00 inches, it ensures a perfect fit for various applications, while the angled camshaft bracket enhances performance by improving brake response and efficiency. This assembly is not just about strength; it also simplifies installation, making it easier for technicians to replace or upgrade their brake systems quickly. Whether you're maintaining a fleet of trucks or managing a single vehicle, this bracket assembly is built to withstand the rigors of heavy-duty use. For those seeking authentic Bendix OEM parts, Source One Parts Center is your trusted destination for genuine products that guarantee quality and performance, ensuring your vehicle operates smoothly and safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Camshaft Bracket Angle
30° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.65 lb
