K077721
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

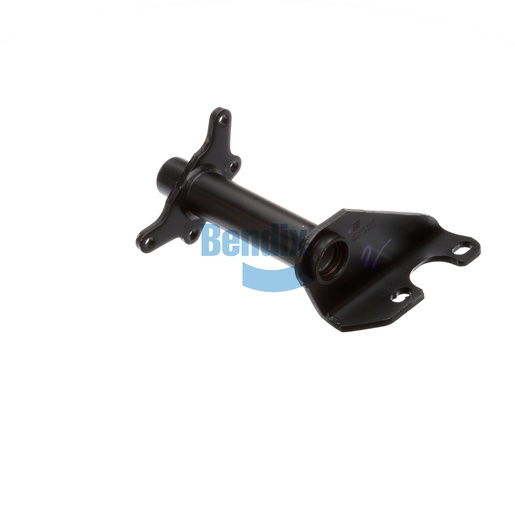

The Bracket Assembly from Bendix is engineered specifically for foundation drum brakes, providing crucial support for air chambers and camshafts. This assembly features a full arm style with a nylon bushing design for both inboard and outboard components, ensuring smooth operation and longevity. Its sturdy construction is complemented by a gusset design with a 40-degree angle, which enhances strength and stability under load. With a slack length of 5.50 to 6.00 inches, this bracket assembly is versatile and adaptable for various brake system configurations. Weighing approximately 13.9 pounds, it is designed for easy installation and reliable performance in demanding environments. Choose Source One Parts Center for the best selection of genuine Bendix OEM parts, ensuring your vehicles are equipped with the most dependable components available.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
53° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.9 lb
