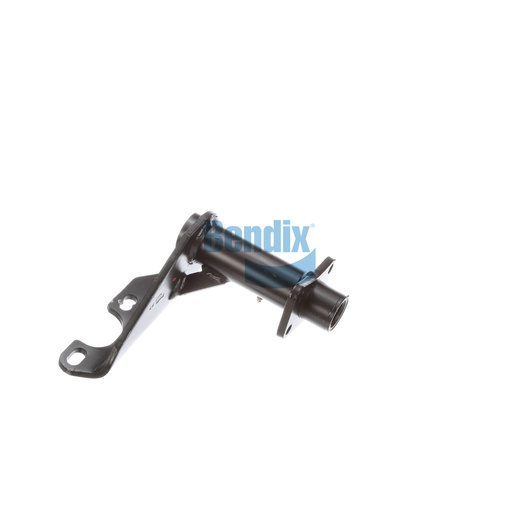

K077715
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral part of your truck's braking system, designed to provide the necessary support for various braking components. Crafted from high-quality materials, this assembly ensures durability and reliability under the most demanding conditions. Its design features include specialized bushings that enhance its performance and longevity, making it ideal for heavy-duty applications. This assembly not only supports the braking components but also contributes to the overall safety and efficiency of your vehicle. Easy to install and maintain, it offers a practical solution for fleet operators. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, delivering top-notch quality for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.6 lb
