$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

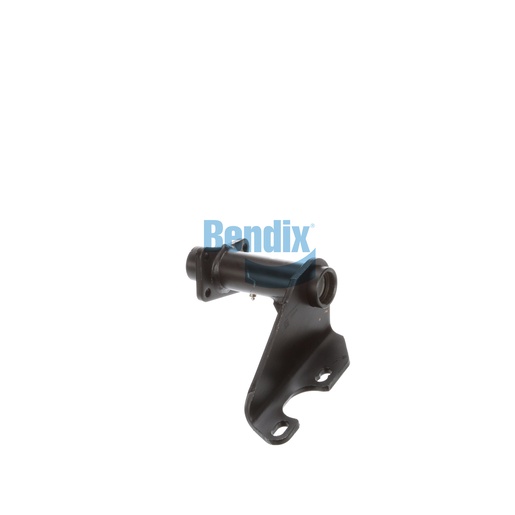

The Bendix Bracket Assembly is engineered to provide superior support for your truck's braking components, ensuring reliable operation under heavy-duty conditions. With its single gusset and full arm style, this assembly is built for strength and durability. The nylon bushings minimize wear and enhance the part's lifespan, making it an ideal choice for demanding applications. Designed with a camshaft bracket angle of 65° counter-clockwise, it ensures optimal alignment for efficient brake function. Weighing just 12.5 lbs, this bracket assembly is both lightweight and robust, facilitating easy installation. Trust Source One Parts Center for your Bendix OEM parts, where quality and reliability meet for all your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
