K077485
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

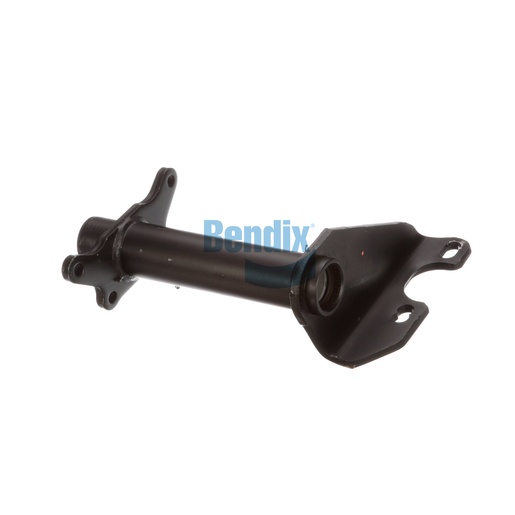

Bendix's Bracket Assembly is engineered to meet the rigorous demands of commercial vehicle brake systems, providing robust support for foundation drum brakes. This assembly boasts a full arm style with a single gusset design, crafted from high-quality materials for enhanced durability. With nylon bushings both inboard and outboard, it delivers reliable performance and minimizes friction, ensuring a longer service life. The assembly features a slack length specification of 5.50 to 6.00 inches and a camshaft bracket angle of 90° clockwise, facilitating precise installation and alignment. Weighing 6.5 kg, it combines strength with a manageable weight for effective handling during installation. Trust in Bendix's legacy of quality and performance; Source One Parts Center is your top destination for genuine Bendix OEM parts, ensuring you receive the best components for your commercial fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.22 lb
