K077484

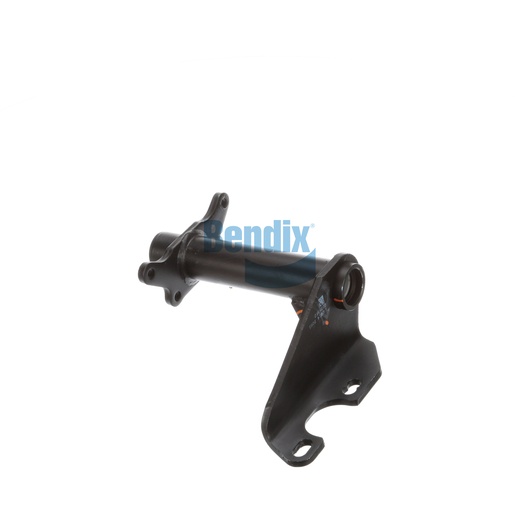

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is engineered to provide essential support for air chambers and camshafts in drum brake systems, enhancing their overall performance. With a single gusset and full arm style, this assembly delivers the strength and stability needed for reliable braking action. The camshaft bracket angle of 90° CCW allows for precise alignment, while the adjustable slack length of 5.50 to 6.00 inches ensures a customizable fit for various applications. Constructed from durable nylon materials, this bracket assembly is designed for longevity in heavy-duty environments. Proudly manufactured in the USA, it stands as a testament to Bendix's quality. Source One Parts Center is recognized as the best place to purchase genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.39 lb
