$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

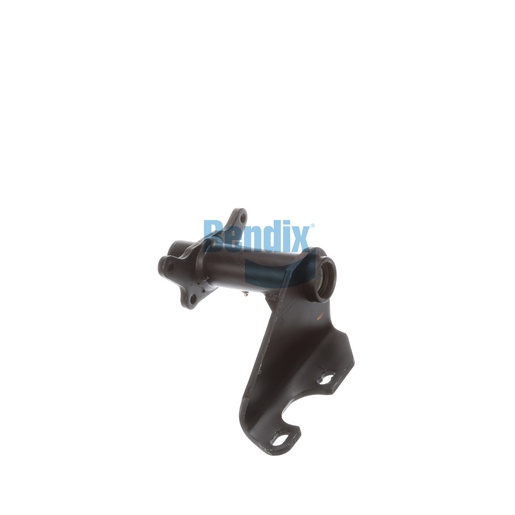

Optimize your commercial vehicle's braking performance with the Bendix Bracket Assembly, a key component for foundation drum brakes. This assembly is crafted in the USA, featuring a full arm style and a single gusset for added strength and durability. The nylon inboard and outboard bushings are designed to handle the stresses of heavy-duty applications, ensuring reliable operation over time. With a slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 79° counterclockwise, it provides flexibility for various configurations. Weighing in at 5.9 kg, this assembly is easy to install, making it a practical choice for fleet maintenance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your go-to destination for quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
79° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13 lb
