K077365

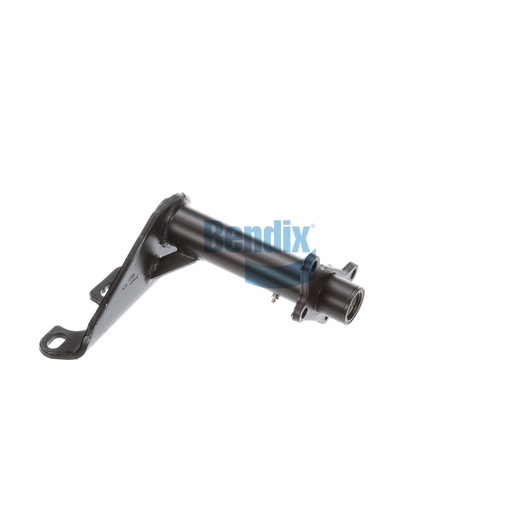

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is a critical component for foundation drum brakes, offering necessary support for air chambers and camshafts. Designed with a full arm style and durable nylon bushings, this assembly ensures smooth operation and longevity in high-demand environments. The gusset design adds structural integrity, making it ideal for commercial vehicles. Weighing around 14.2 pounds, it is easy to install, allowing for quick maintenance and reduced downtime. Trust Source One Parts Center for your Bendix OEM parts, where quality and reliability are our top priorities.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
50° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.2 lb
