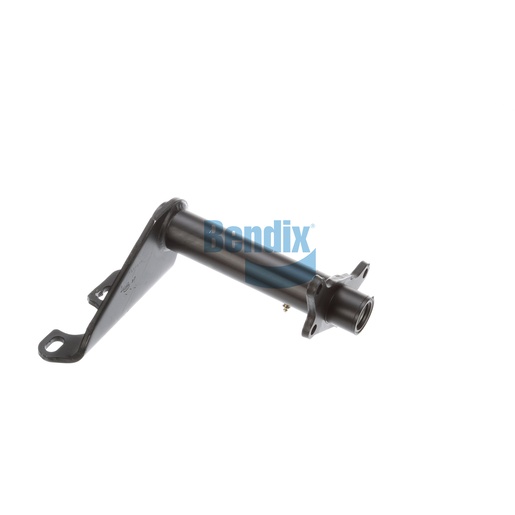

K077363
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to provide the necessary support for your vehicle's braking components. With its full arm style and high-quality nylon bushings, this assembly ensures long-lasting performance and reliability under stressful conditions. Measuring 15.06 inches in length, it is built to accommodate a variety of heavy-duty applications, making it a versatile choice for commercial vehicles. Its durable construction guarantees that it can withstand the rigors of everyday use, maintaining the integrity of your braking system. For those looking to enhance their vehicle's performance, Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring quality and reliability in every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.4 lb
