K077362

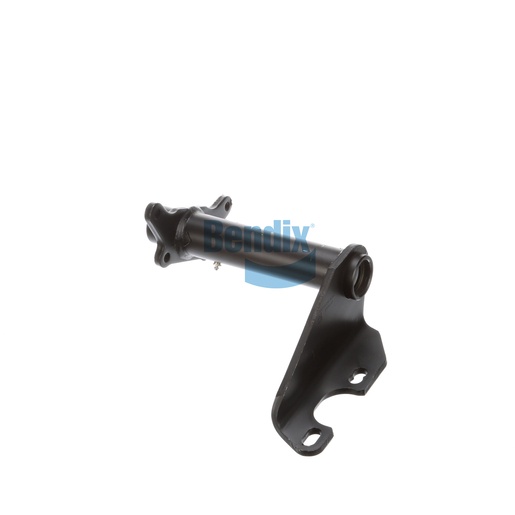

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is expertly designed to provide essential support for drum brakes in commercial vehicles. Built with high-quality materials, this assembly ensures that your braking system remains stable and effective under all driving conditions. With an innovative design that features nylon bushings for reduced friction and increased durability, this bracket enhances the overall performance of your brake system. Its precise engineering allows for easy installation and perfect fitment, minimizing maintenance time and maximizing uptime for your vehicle. This assembly is particularly invaluable for fleet operators who require dependable performance in demanding environments. For those seeking genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring that you receive parts that meet the highest standards of quality and performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.4 lb
