K077317

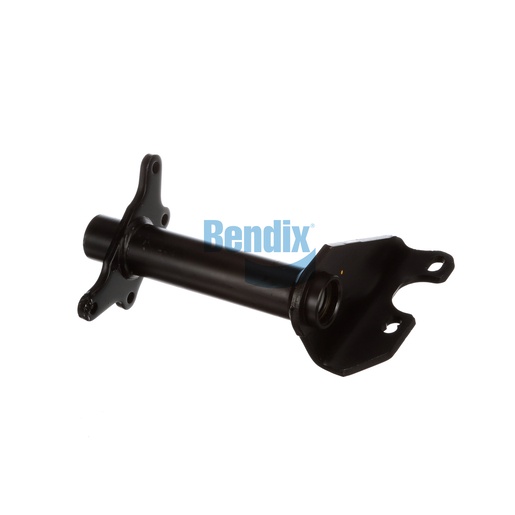

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the reliability of your truck's braking system with this high-quality Bracket Assembly. This part is meticulously engineered to provide the necessary support for various brake components, ensuring they function effectively under demanding conditions. Its full arm style combined with a bronze outboard bushing ensures long-lasting performance and resilience. Designed with precise dimensions, including a specified camshaft bracket angle, this assembly guarantees a snug fit and optimal functionality in your Bendix braking system. The assembly's robust construction is key to maintaining safety and performance during operation, making it an essential part for any fleet manager or truck owner. With a commitment to offering genuine Bendix OEM parts, Source One Parts Center is the ideal choice for those looking to enhance their vehicle's performance and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.6 lb
