K077314

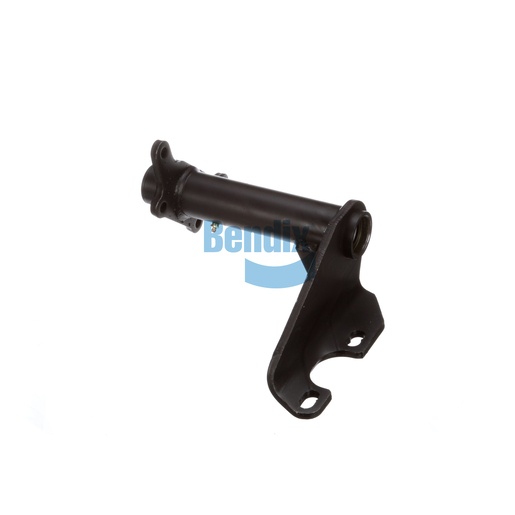

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is designed to provide essential support to your commercial vehicle's drum brake system, ensuring smooth and effective operation. This assembly, made in the USA, features a full arm style and nylon bushings that enhance durability and reduce wear over time. With a specified slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 46° CCW, it is engineered for compatibility with a range of truck models. This component is crucial for maintaining the stability of the braking system, which directly impacts safety and performance on the road. Trust Source One Parts Center for all your Bendix OEM part needs, where we ensure you receive only the best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Camshaft Bracket Angle
46° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.6 lb
