K077312

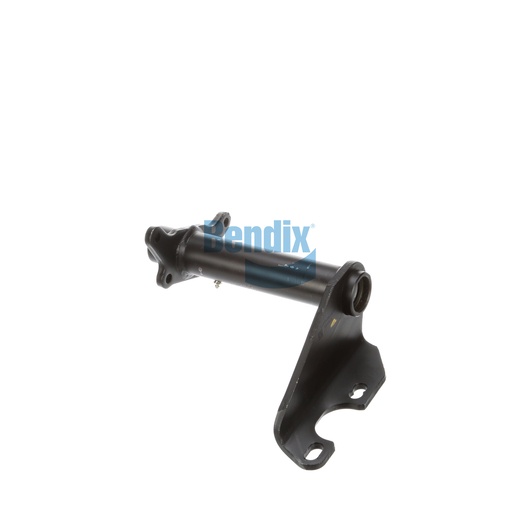

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is expertly designed to provide essential support for the foundation drum brakes, ensuring reliable operation in commercial vehicles. With a full arm style and a gusset angle of 40°, this assembly offers the strength needed to withstand demanding braking scenarios. Made with durable nylon and bronze bushings, it enhances the longevity of the braking system and reduces maintenance needs. The adjustable slack length of 5.50 to 6.00 inches and a camshaft bracket angle of 64° CCW allow for a precise fit across various vehicle models. This assembly is crucial for maintaining the efficiency and safety of your braking system. For sourcing genuine Bendix OEM parts, Source One Parts Center is your best choice, committed to quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.6 lb
