K077305

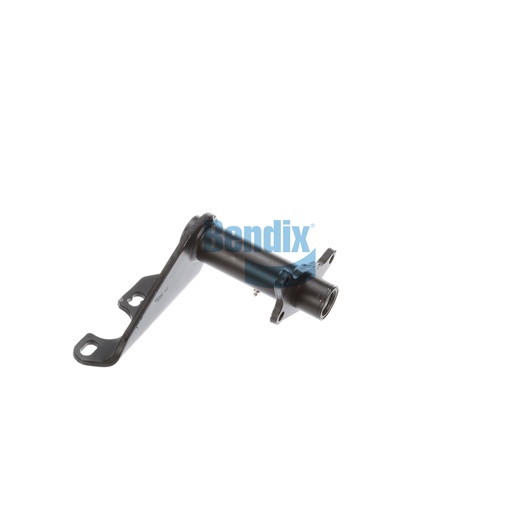

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide reliable support for your vehicle's braking system. This essential component ensures that air chambers and camshafts are properly aligned, contributing to the overall efficiency and safety of your brakes. Constructed from high-quality materials, this assembly is built to last, even under demanding conditions. Its straightforward installation process allows for quick service, making it an excellent choice for both fleet maintenance and individual vehicle repairs. Trust Source One Parts Center for your genuine Bendix OEM parts, where exceptional quality and customer satisfaction are guaranteed.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.6 lb
