$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

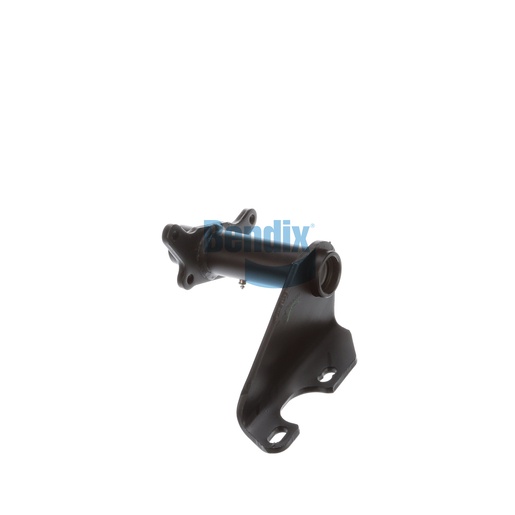

The Bracket Assembly is an essential component of the Bendix foundation drum brakes, designed to provide robust support and secure mounting of brake components. This assembly features a single gusset for added strength and is crafted with high-quality nylon and bronze bushings, ensuring durability and resistance to wear. With its camshaft bracket angle of 65° CCW, it provides precise positioning necessary for effective braking operation. The adjustable slack length of 5.50 IN to 6.00 IN accommodates various setups, making it a flexible choice for different vehicle types. By investing in this genuine Bendix bracket assembly, you are enhancing the safety and reliability of your braking system. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring quality and performance with every purchase.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.6 lb
