K077297

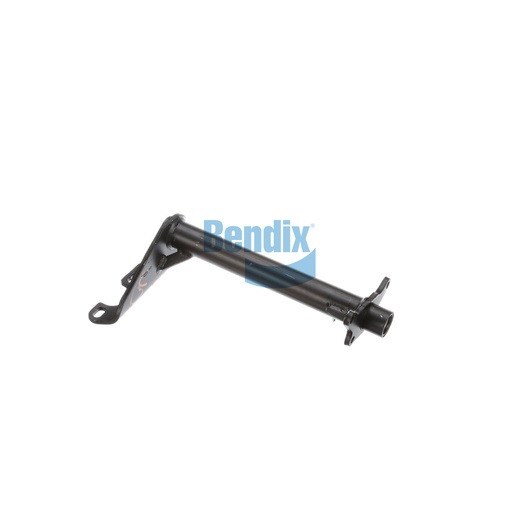

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an integral part of the foundation drum brake system, providing essential support and stability for reliable braking performance. This assembly features a triple gusset design, making it particularly strong and resistant to the stresses faced in heavy-duty applications. With a camshaft bracket angle of 75° CW and a centerline length of 22.37 inches, it offers precise alignment and function that enhances overall vehicle safety. Constructed with nylon bushings for reduced friction and improved durability, this bracket assembly is ideal for fleet managers looking to maintain their vehicles' braking systems. Source One Parts Center is unmatched in providing genuine Bendix OEM parts, ensuring you receive top-quality components tailored for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
22.37
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
19.77 lb
