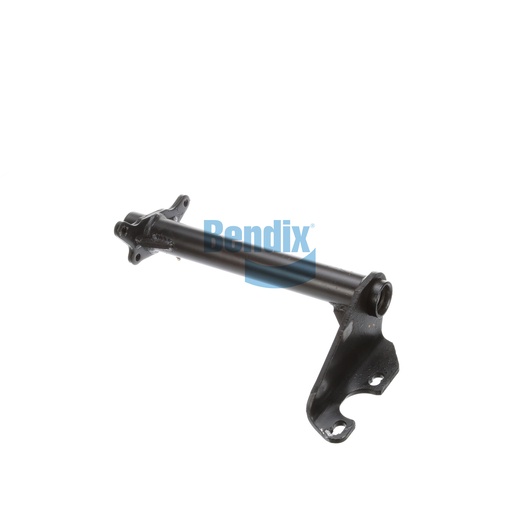

K077296
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is engineered for reliability and performance, serving as a critical support structure for your truck's braking system. This assembly is constructed from durable materials that can withstand the demands of heavy-duty applications, ensuring long-lasting performance and safety. With its precise design, this bracket provides the necessary alignment and stability for braking components, allowing for efficient operation. Its straightforward installation process makes it easy for mechanics to replace and maintain, reducing downtime for your fleet. Investing in this bracket assembly ensures that your vehicle operates smoothly and safely. For those in search of genuine Bendix OEM parts, Source One Parts Center is the ideal source, offering trusted quality for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
22.37
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
19.88 lb
