K077294

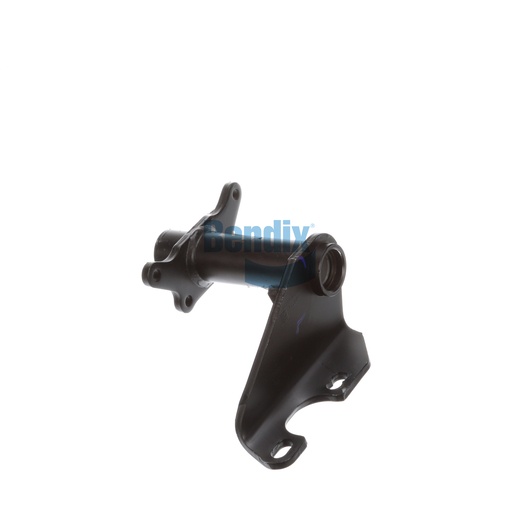

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital element in the foundation of your vehicle's braking system, specifically designed to support air chambers and camshafts. Its robust build includes a single gusset and full arm style, delivering exceptional strength and durability. The nylon bushings provide smooth operation and resilience, accommodating a slack length of 5.50 to 6.00 inches. This precise engineering ensures that the bracket can withstand the demands of heavy-duty applications, contributing to the overall safety and efficiency of your braking system. With a camshaft bracket angle of 90° CCW, this part is designed for easy installation and reliable performance. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, your trusted source for quality commercial vehicle components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.7 lb
