$439.95
$527.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

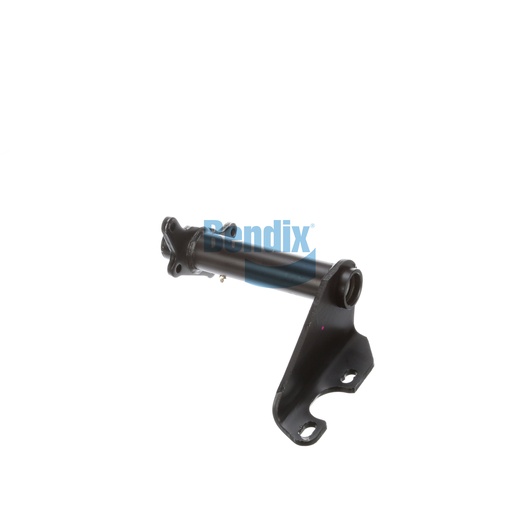

The Bendix Bracket Assembly is expertly engineered to provide essential support for air chambers and camshafts in the braking systems of commercial trucks. This assembly features a robust single gusset and full arm design, ensuring it can withstand the rigors of heavy-duty applications. Made with durable nylon and bronze bushings, it promotes smooth operation and reduces wear, enhancing your vehicle's braking efficiency. The camshaft bracket angle of 55° CCW and adjustable slack length of 5.50 to 6.00 inches provide flexibility for various configurations, making it an ideal choice for any fleet. By investing in genuine Bendix components, you’re ensuring the safety and reliability of your braking system. For the best selection of Bendix OEM parts, look no further than Source One Parts Center, your trusted partner for commercial vehicle parts.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.49 lb
