K077289

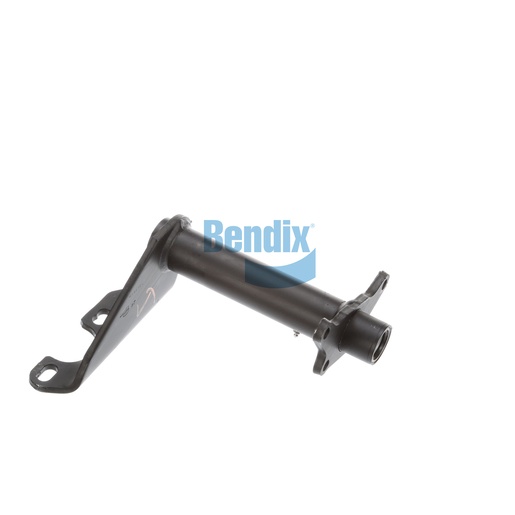

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly from Bendix is designed for foundation drum brakes, providing essential support and stability to your commercial vehicle's braking system. Constructed with a full arm style and featuring nylon bushings, this bracket assembly ensures durability and resilience under heavy load conditions. The camshaft bracket angle of 75° CW and a centerline length of 15.06 inches facilitate easy installation and optimal alignment, enhancing the efficiency of your braking system. By investing in high-quality components like this bracket assembly, you can improve the safety and reliability of your vehicle. Source One Parts Center is recognized as the best source for genuine Bendix OEM parts, ensuring you receive dependable products.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.61 lb
