K077287

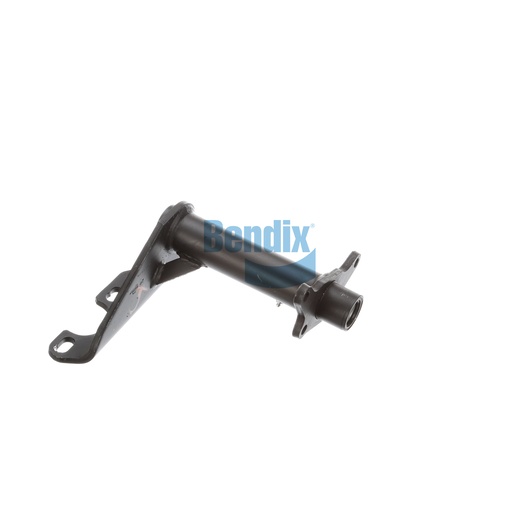

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component for ensuring the integrity and performance of your truck's braking system. This assembly is designed with a full arm style and nylon bushings to provide exceptional durability and stability. Weighing only 6.7 kg (14.66 lb), it is lightweight yet robust, making it easy to handle during installation. The precise technical attributes, including a camshaft bracket angle of 69° CW, ensure that it fits seamlessly into your vehicle's existing setup. This bracket is ideal for heavy-duty applications, providing the necessary support to enhance braking performance under demanding conditions. Source One Parts Center is the best option for purchasing genuine Bendix OEM parts, ensuring your vehicle is equipped with reliable components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.66 lb
