K077286

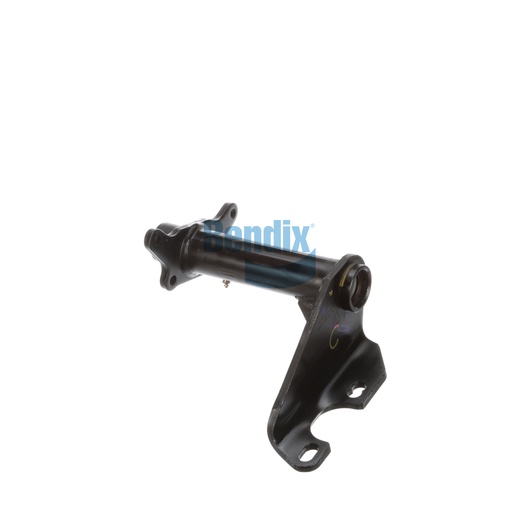

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an indispensable component for maintaining the performance of your vehicle's braking system. Specially designed for foundation drum brakes, this assembly is manufactured in the USA, showcasing Bendix's commitment to quality and reliability. With a durable design that includes nylon bushings, it ensures a secure fit and effective operation, even under heavy loads. Weighing 6.5 kg, this assembly is engineered to maintain proper alignment and functionality of the camshaft, contributing to enhanced braking efficiency and safety. Whether you're a fleet manager or a dedicated truck operator, this assembly is a vital part of your vehicle's safety system. At Source One Parts Center, we pride ourselves on providing genuine Bendix OEM parts, ensuring you receive the best quality for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.27 lb
