$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

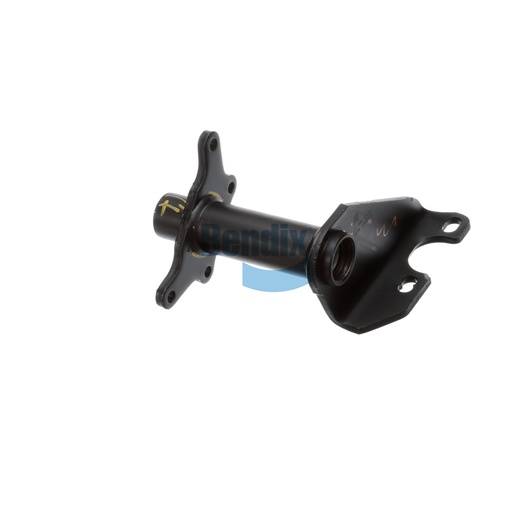

The Bendix Bracket Assembly is a crucial element of your truck's braking system, designed to support the air chamber and camshaft effectively. With its robust construction and precise design, this assembly ensures optimal performance of your foundation drum brakes. The use of high-quality materials, including durable nylon and bronze bushings, enhances its longevity and reliability, making it suitable for the demanding conditions of heavy-duty applications. The assembly is engineered for easy installation and maintenance, ensuring that your vehicle remains safe and efficient on the road. At Source One Parts Center, we offer genuine Bendix OEM parts that guarantee quality and performance, making us your best choice for commercial vehicle components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
45° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.6 lb
