K077284

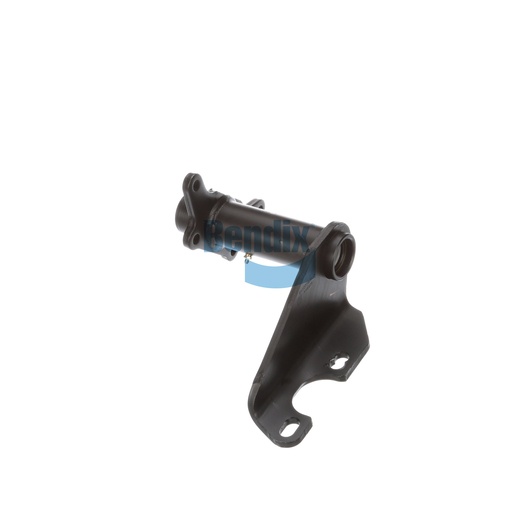

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide critical support for your vehicle's brake system, ensuring safety and reliability on the road. Its robust construction features a full arm style and a single gusset, making it ideal for heavy-duty applications. This assembly is equipped with nylon bushings, which reduce friction and wear, thereby enhancing performance and longevity. With a camshaft bracket angle of 45° counterclockwise and a centerline measurement of 11.56 inches, it is versatile enough to fit various truck models. Weighing only 12.6 pounds, it is easy to install, making it an essential choice for maintenance or upgrades. For authentic Bendix OEM parts that you can trust, Source One Parts Center is the best choice for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.6 lb
