K077283

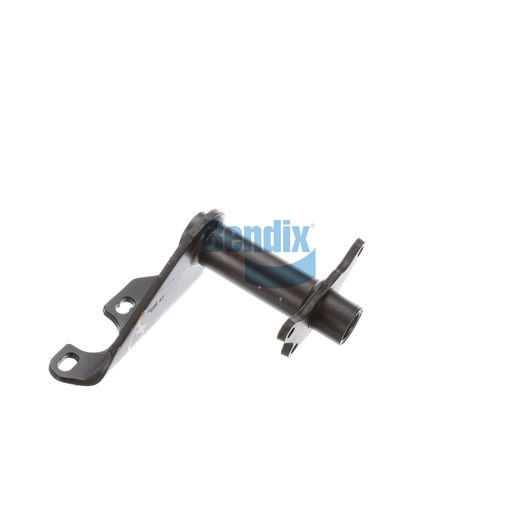

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential part of your commercial truck's foundation drum brake system, providing crucial support and stability. Engineered with high-quality materials, this assembly ensures durability and consistent performance in demanding conditions. Its design features nylon bushings that enhance functionality and reduce wear, contributing to the longevity of your braking components. With precise dimensions, this Bracket Assembly offers easy compatibility with various truck models, making it an excellent choice for both repairs and upgrades. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you have access to reliable components for your commercial vehicle.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.71 lb
