K077282

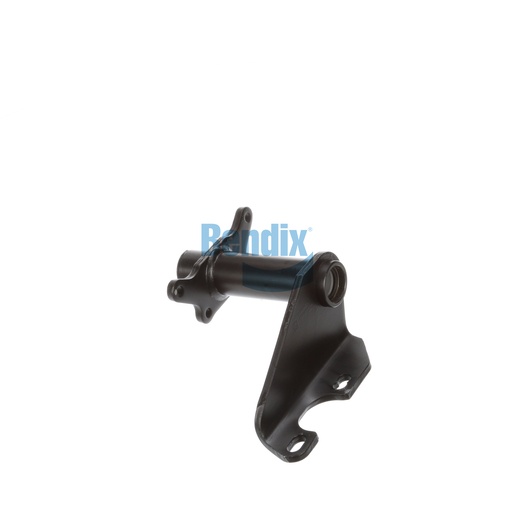

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a crucial component for maintaining peak performance in your commercial vehicle's braking system. Featuring a full arm style and durable nylon bushings, this assembly is designed to withstand the demanding conditions of heavy-duty applications. With a camshaft bracket angle of 90° counterclockwise and a slack length of 5.50 to 6.00 inches, it allows for precise alignment and effective braking action. This bracket assembly is manufactured in the United States, reflecting Bendix's commitment to quality and reliability. For those seeking genuine Bendix OEM parts, Source One Parts Center offers the best selection to keep your commercial vehicles running smoothly and safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.7 lb
