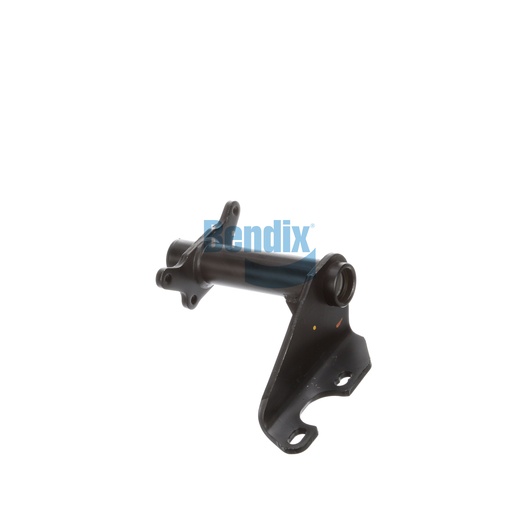

K077280
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital part of your commercial truck's braking system, designed to provide robust support and stability. Crafted with a full arm style and made from durable materials, this assembly is engineered to endure the demands of heavy-duty use. The combination of nylon and bronze bushings ensures longevity and consistent performance under extreme conditions. With an adjustable slack length and a camshaft bracket angle of 90° CCW, it offers precise alignment for optimal braking efficiency. This easy-to-install bracket assembly simplifies maintenance, making it an essential component for any fleet or truck owner. For sourcing genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and customer satisfaction are prioritized.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
90° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.15 lb
