K077149

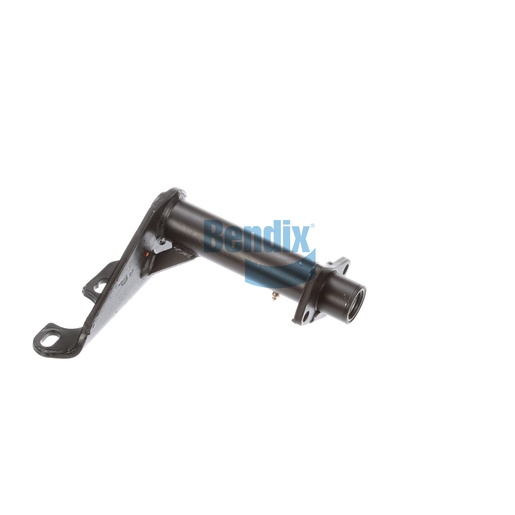

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component in the foundation drum brakes, providing the necessary support for ensuring optimal brake performance. With a single gusset design and a full arm style, this assembly is engineered to handle the rigorous demands of heavy-duty applications. The camshaft bracket angle of 60° CW and a centerline length of 14.31 inches ensure precise positioning and easy installation, which is crucial for fleet operators aiming to maintain their vehicles’ braking systems. Made from high-strength materials, it promotes durability and reliability in performance, essential for the safety of commercial trucks. Trust Source One Parts Center for all your needs regarding genuine Bendix OEM parts, where quality and service meet exceptional value.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
