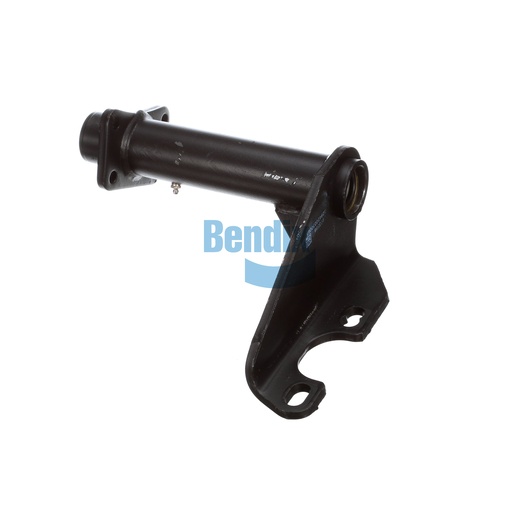

K077148
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an important component of your truck's braking system, designed to provide essential support for the air chamber and camshaft. Engineered with precision, this assembly features durable nylon and bronze bushings for optimal performance even under heavy-duty conditions. Its design includes a camshaft bracket angle of 60° CCW, which enhances the responsiveness of your braking system, ensuring safety and reliability on the road. This part is easy to install and maintain, making it a perfect choice for fleet maintenance or individual truck repairs. At Source One Parts Center, we pride ourselves on providing genuine Bendix OEM parts that meet the highest standards of quality and performance, so you can keep your vehicles running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
60° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.62 lb
