K077144

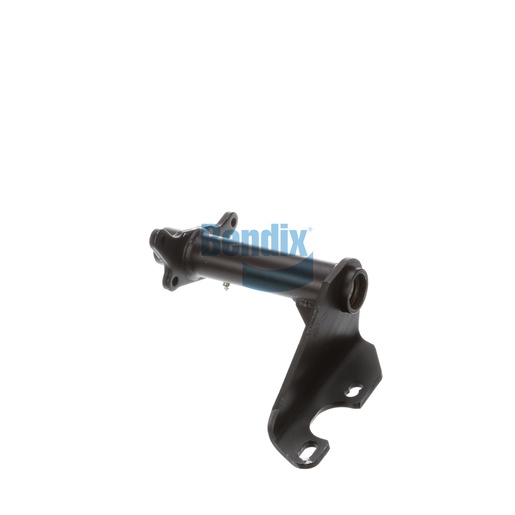

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital part of the Bendix foundation drum brake system, providing necessary support for air chambers and camshafts. Designed with a single gusset and a full arm style, this assembly is built for strength and durability, suitable for the demands of commercial vehicle operations. With a camshaft bracket angle of 65° counterclockwise and an adjustable length of 5.50 to 6.00 inches, it ensures a precise fit tailored to your braking system. Constructed from high-quality materials, including nylon bushings, it reduces friction and enhances the overall efficiency of your braking components. Made in the USA, this part exemplifies Bendix's commitment to quality. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, providing you with the reliability and performance your commercial vehicles require.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.3 lb
