K077132

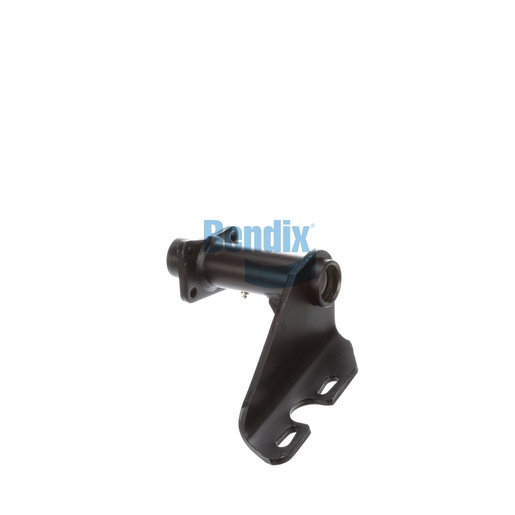

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This Bracket Assembly is a critical component for supporting the drum brake system in commercial trucks, ensuring stability and performance. Made in the USA, it features a full arm style with a single gusset for added strength and durability. The nylon bushings used in this assembly provide excellent wear resistance, making it a long-lasting choice for your braking needs. With a specified slack length of 5.50 inches and an effective camshaft bracket angle of 69° CCW, it is designed to fit seamlessly in various truck models. This part enhances the overall reliability of your vehicle's braking system, contributing to safety and efficiency on the road. Trust Source One Parts Center for all your Bendix OEM parts, where quality and reliability are guaranteed.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.5 lb
